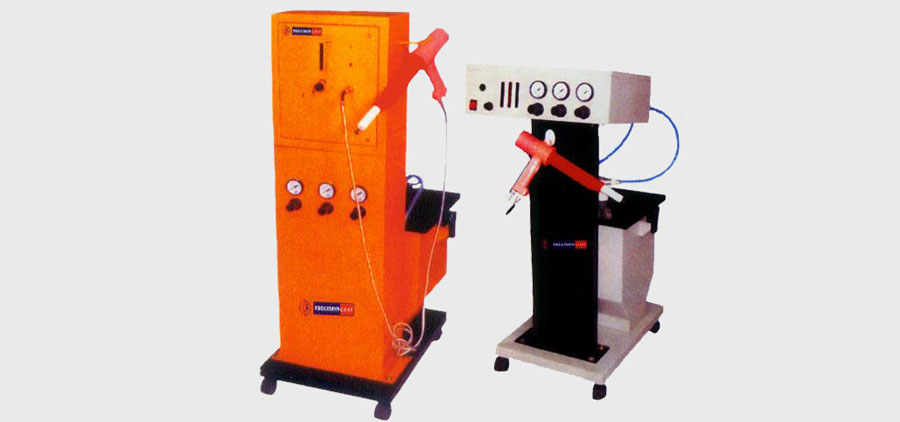

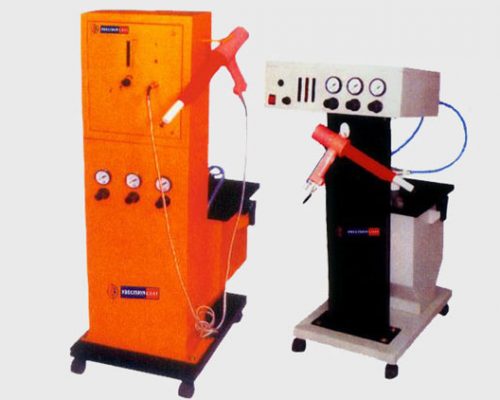

Manual Series –
100 KV Electrostatic Powder Coating Machine combine production-proven Powder Spray, Gun & Control technology and performance suitable for all type of jobs with low and mass volume in any Batch & Conveyorised System.
Automatic Series –
Precision System introduces “Automatic Electrostatic Powder Coating Gun” with control unit providing unbeatable application quality on any metal surface. It has centrifugal force to ensure uniformity & deep penetration. Spraying fineness, Higher transfer efficiency, ease of implementation & adjustment meet guaranteed both a high level of productivity and a superb quality finish.
Features –
All type of coating powders can be sprayed with Precision System Auto Gun on profiles, tubular- shaped, flat or voluminous parts. These study applicators has been designed particularly for intensive production in high volumes. It can be used from a stationery position or mounted on a reciprocator or oscillator.
Gun Technical Specifications
| # | Description | Details |
|---|---|---|
| 1. | Input Voltage - | 220V Ac 50Hz |
| 2. | HV OutPut - | 100 Kv - VE DC |
| 3. | Solonocide Voltage - | 220V Ac |
| 4. | Output Current - | 150 MA |
| 5. | Trigger - | Touch Switch |
| 6. | Polarity - | +ve or -ve |
| 7. | Cascade - | Embedded in Barrel |
| 8. | Powder Flow Rate - | Max. 500 Gms. / Min |
| 9. | Weight - | 635 Gms |
| 10. | Length - | 375 mm |
| 11. | Container Capacity - | 25 - 35 Ltrs. |
| 12. | Air Requirement - | 8 CFM |
| 13. | Air Input Connection - | 0.25" BSP |
| 14. | Air Consumption - | 10m3/Hr.at 5 Kg/cm2 |
| 15. | Transfer Efficiency - | Maximum |
| 16. | KV Indication - | LED Bar Display |
| 17. | HV Set Control - | Step less 10 KV - 100 KV |
| 18. | Mains ON - | LED Indication |
